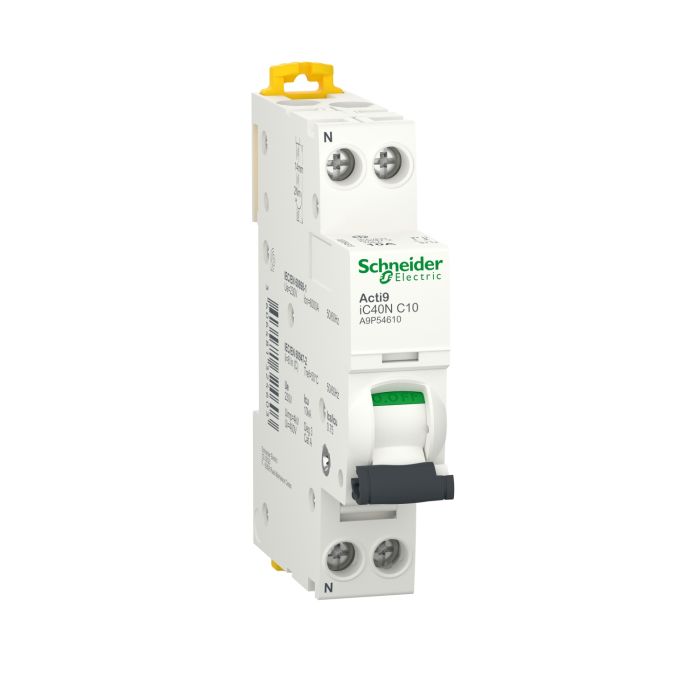

• A9P54610 IC40N 1P+N C10 | A9P54610IC40N1P+NC10• Voltage type: AC, Built-in depth: 44.000, Rated current: 10.000, Rated voltage: 230.000, Frequency: 50.000, Release characteristic: C, Rated insulation voltage Ui: 400.000, Current limiting class: 3.000, Over voltage category: 3.000, Pollution degree: 3.000, Width in number of modular spacings: 1.000, Explosion-proof: false, Degree of protection (IP): IP20, Number of protected poles: 1.000, Concurrently switching N-neutral: true, Suitable for flush-mounted installation: false, Connectable conductor cross section solid-core: 1.000, Connectable conductor cross section multi-wired: 1.000, Ambient temperature during operating: -25.000, Flush-mounted installation: false, Additional equipment possible: true, Number of poles (total): 2.000, Rated short-circuit breaking capacity Icn EN 60898 at 400 V: -, Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 6.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 10.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: -, Rated impulse withstand voltage Uimp: 4.000
