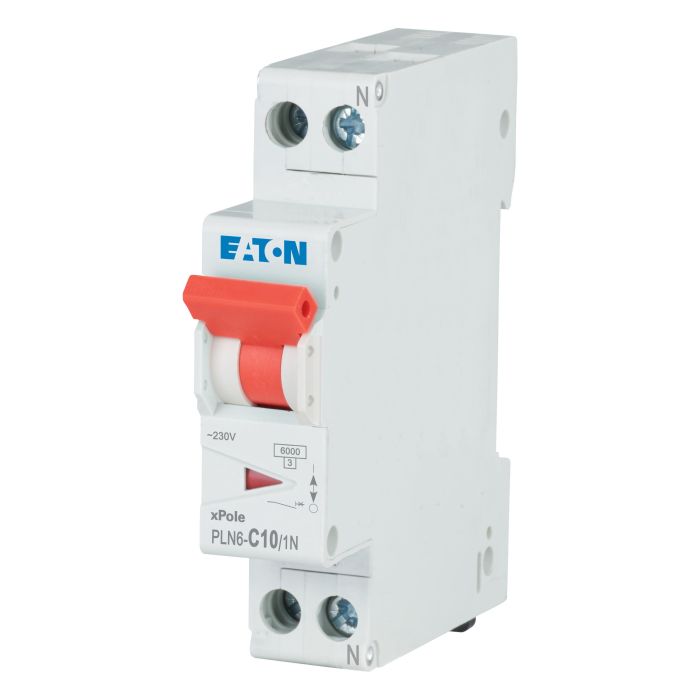

• PLN6-C10/1N-MW AUTOMAAT C10A 6KA 1P+N 18MM | PLN6C10/1NMWAUTOMAATC10A6KA1P+N18MM• Frequency: 50.000, Voltage type: AC, Built-in depth: 70.500, Rated current: 10.000, Rated voltage: 230.000, Release characteristic: C, Rated insulation voltage Ui: 440.000, Current limiting class: 3.000, Over voltage category: 3.000, Pollution degree: 2.000, Width in number of modular spacings: 1.000, Explosion-proof: false, Power loss: 1.900, Degree of protection (IP): IP20, Number of protected poles: 1.000, Concurrently switching N-neutral: true, Rated short-circuit breaking capacity EN 60898: 6.000, Rated short-circuit breaking capacity IEC 60947-2: 0.000, Suitable for flush-mounted installation: false, Connectable conductor cross section solid-core: 1.000, Connectable conductor cross section multi-wired: 1.000, Ambient temperature during operating: -25.000, Flush-mounted installation: false, Additional equipment possible: true, Number of poles (total): 2.000, Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 6.000, Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 6.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 0.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 0.000, Rated impulse withstand voltage Uimp: 4.000
