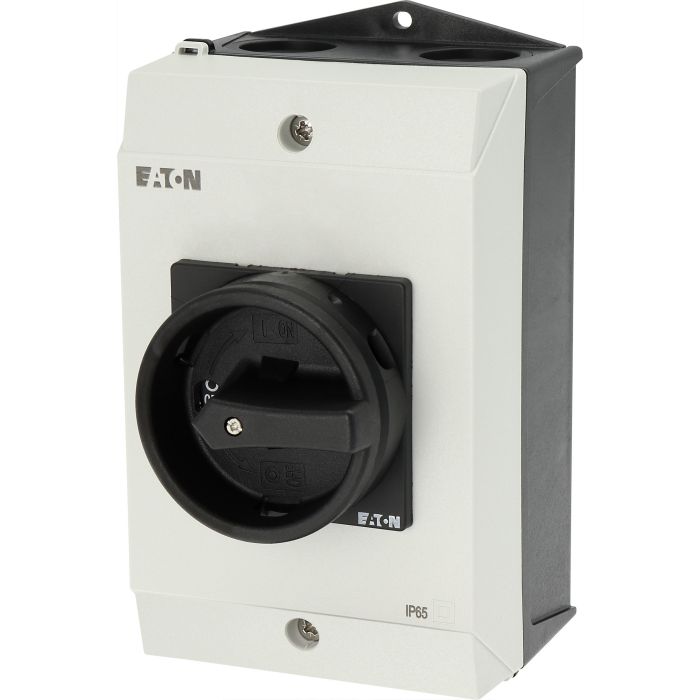

• P1-25/I2/SVB-SW/HI11 LASTSCHEIDER P1-25/I2/SVB-SW/H | P125/I2/SVBSW/HI11LASTSCHEIDERP125/I2/SVBSW/H• Width: 100.000, Height: 180.000, Depth: 115.000, Rated operation power at AC-3, 400 V: 7.500, Number of auxiliary contacts as normally open contact: 1.000, Number of auxiliary contacts as normally closed contact: 1.000, Rated permanent current Iu: 25.000, Number of poles: 3.000, Rated operating voltage: 690.000, Conditioned rated short-circuit current Iq: 80.000, Width in number of modular spacings: -, Degree of protection (IP), front side: IP65, Number of auxiliary contacts as change-over contact: 0.000, Number of switches: 1.000, Interlockable: true, Motor drive integrated: false, Type of electrical connection of main circuit: Screw connection, Version as emergency stop installation: false, Type of control element: Door coupling rotary drive, Version as main switch: true, EF006984: true, Version as safety switch: false, Version as maintenance-/service switch: true, Rated operation power at AC-23, 400 V: 13.000, EF007028: 7.500, Rated short-time withstand current lcw: 0.640, Colour control element: Black, Suitable for ground mounting: true, Suitable for front mounting 4-hole: false, Suitable for front mounting centre: false, Suitable for distribution board installation: false, Suitable for intermediate mounting: false, Max. rated operation voltage Ue AC: 690.000, Motor drive optional: false, Voltage release optional: false, Device construction: Complete device in housing, Rated permanent current at AC-21, 400 V: 25.000, Switching power at 400 V: 13.000, Version as reversing switch: false, Rated permanent current at AC-23, 400 V: 25.000, Degree of protection (NEMA): 12, EF016444: false
