Article number: O10069105

In stock

Backorder allowed

Out of stock

• mRB6-16/3N/B/003-A AARDL AUTM B16A30MA 6KA 3P+N | mRB616/3N/B/003AAARDLAUTMB16A30MA6KA3P+N• Voltage type: AC, Built-in depth: 70.000, Rated current: 16.000, Rated voltage: 400.000, Release characteristic: B, Rated insulation voltage Ui: 500.000, Rated fault current: 0.030, Leakage current type: A, Surge current capacity: 0.250, Current limiting class: 3.000, Over voltage category: 3.000, Pollution degree: 2.000, Width in number of modular spacings: 4.000, Power loss: -, Frequency: 50 Hz, Degree of protection (IP): IP20, Number of protected poles: 4.000, Concurrently switching N-neutral: true, Rated short-circuit breaking capacity EN 60898: 6.000, Rated short-circuit breaking capacity IEC 60947-2: 0.000, Suitable for flush-mounted installation: false, Connectable conductor cross section solid-core: 1.000, Connectable conductor cross section multi-wired: 1.000, With interlocking device: false, Ambient temperature during operating: -25.000, Flush-mounted installation: false, Number of poles (total): 4.000, Anti-nuisance tripping version: false, Rated impulse withstand voltage Uimp: 4.000, Rated short-circuit breaking capacity Icn acc. EN 61009-1: 6.000, Disconnection characteristic: Undelayed, Rated short-circuit breaking capacity acc. EN 61009: 6.000

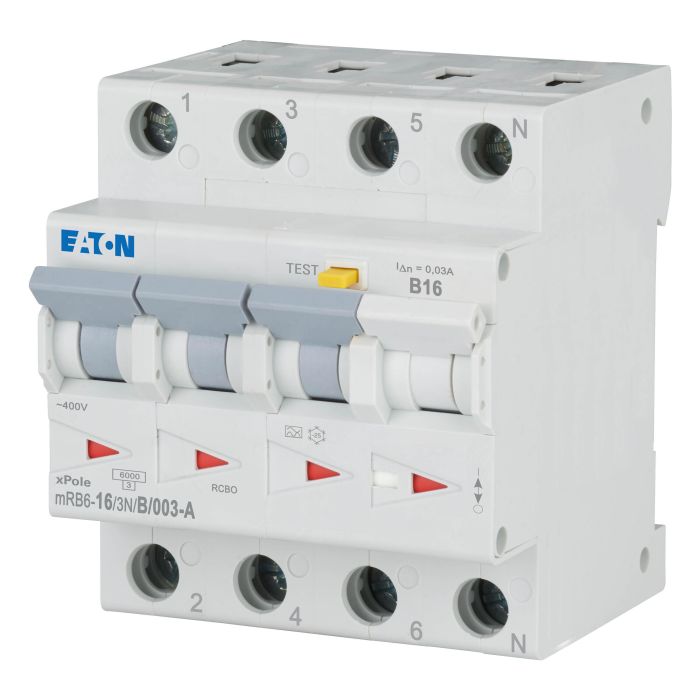

Description / EATON mRB6-16/3N/B/003-A AARDL AUTM B16A30MA 6KA 3P+N (1pc)

• mRB6-16/3N/B/003-A AARDL AUTM B16A30MA 6KA 3P+N | mRB616/3N/B/003AAARDLAUTMB16A30MA6KA3P+N• Voltage type: AC, Built-in depth: 70.000, Rated current: 16.000, Rated voltage: 400.000, Release characteristic: B, Rated insulation voltage Ui: 500.000, Rated fault current: 0.030, Leakage current type: A, Surge current capacity: 0.250, Current limiting class: 3.000, Over voltage category: 3.000, Pollution degree: 2.000, Width in number of modular spacings: 4.000, Power loss: -, Frequency: 50 Hz, Degree of protection (IP): IP20, Number of protected poles: 4.000, Concurrently switching N-neutral: true, Rated short-circuit breaking capacity EN 60898: 6.000, Rated short-circuit breaking capacity IEC 60947-2: 0.000, Suitable for flush-mounted installation: false, Connectable conductor cross section solid-core: 1.000, Connectable conductor cross section multi-wired: 1.000, With interlocking device: false, Ambient temperature during operating: -25.000, Flush-mounted installation: false, Number of poles (total): 4.000, Anti-nuisance tripping version: false, Rated impulse withstand voltage Uimp: 4.000, Rated short-circuit breaking capacity Icn acc. EN 61009-1: 6.000, Disconnection characteristic: Undelayed, Rated short-circuit breaking capacity acc. EN 61009: 6.000

More Information

Item Number mRB6-16/3N/B/003-A AARDL AUTM B16A30MA 6KA 3P+N
Brands EATON
HS Code Upon Request
EAN 04015081184828
Manufacturer Eaton
Product Condition New
Packing Condition Original Packing
